Puretec Hybrid-P1 All in One Filtration System

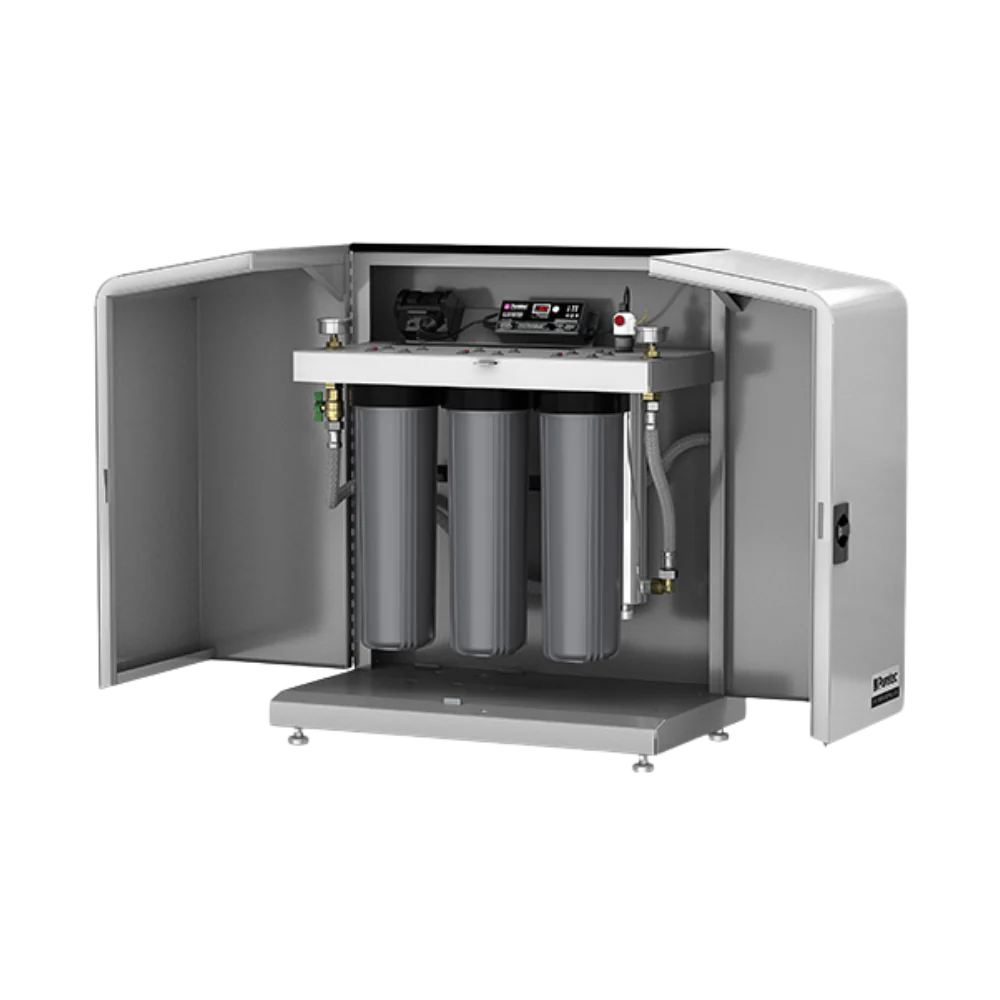

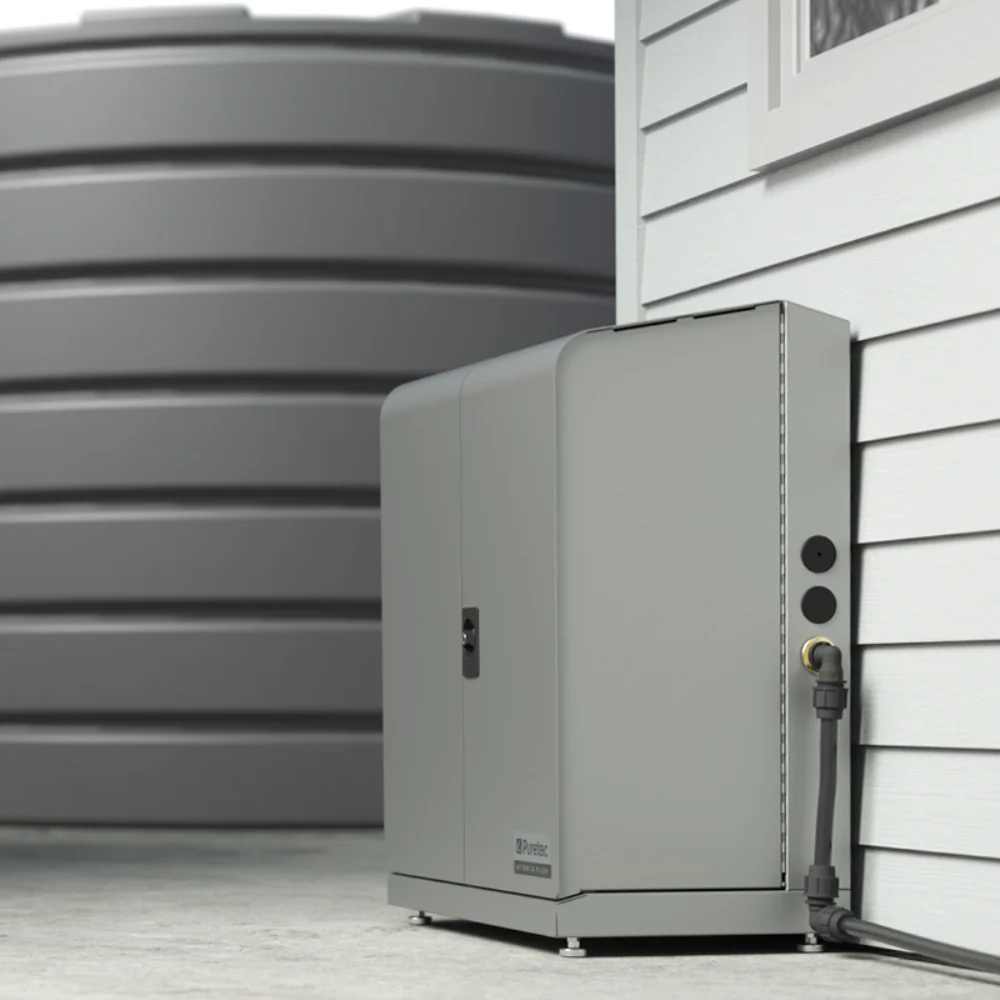

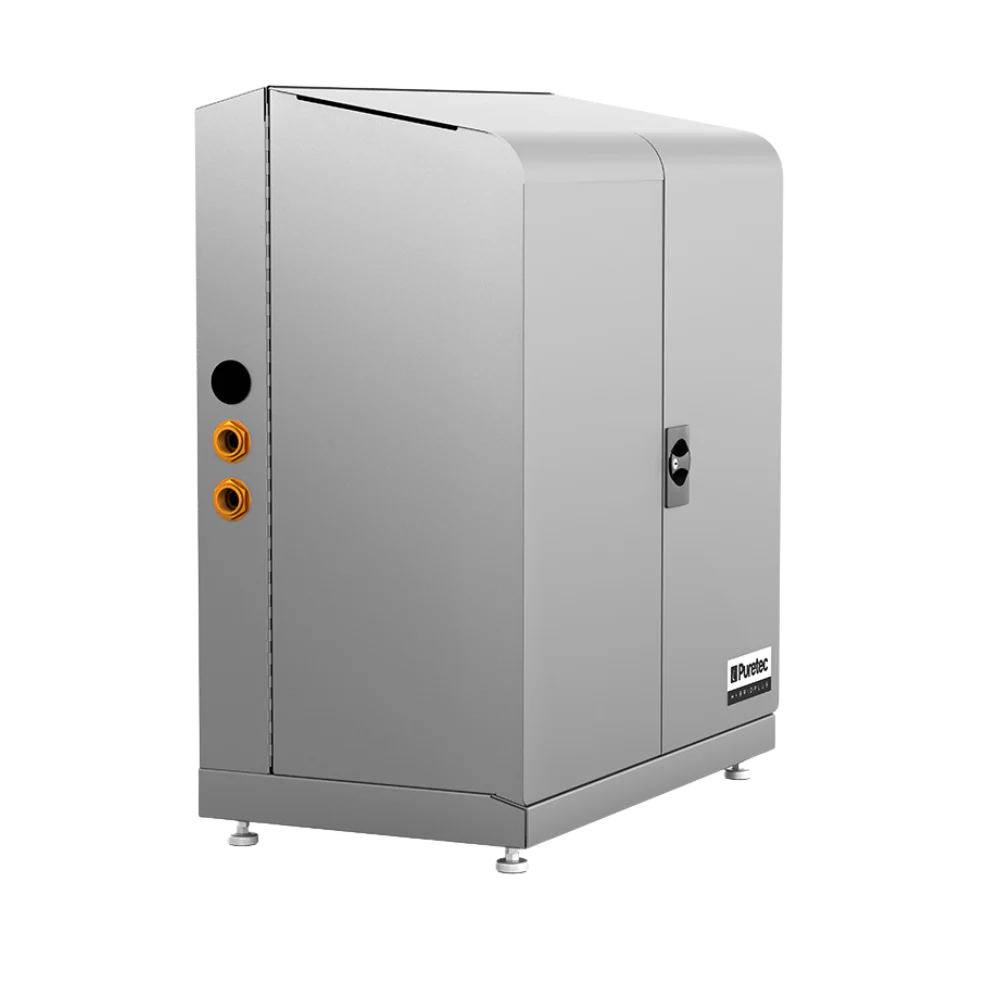

The Puretec Hybrid-P1 is an all-in-one filtration system with pump provision, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater. The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Note: This model does not include a pump or switchover valve but has the allowance to install your own pressure system into the unit.
Max pump dimensions: 560 (H) x 540 (W) x 240 (D) mm
Features and Benefits
- Designed specifically for rainwater, the Puretec HybridPlus is a plug & play package with pump provision, filters & UV in one unit that is weatherproof, rodent-proof and tamper proof.
- Bacteria protection - Kills 99.99% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire™ ultraviolet technology, natural process that’s completely eco-friendly and chemical-free.
- Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.
- Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.
- Neatly concealed ventilation to allow airflow and heat dissipation.
- Pump provision to allow for your own pump installation and compatible with a range of pumps.
Specifications
- Ordering Code: HYBRID-P1-LT
- Replacement Cartridge(s):
Stage 1 filtration
Code: PL05MP2
Stage 2 filtration
Code: CB05MP2
Stage 3 filtration
Code: PX01MP2
UV Lamp
Code: RL6
Quartz Sleeve
Code: RQS6 - Grundfos pump model: not included
- Rated power: N/A
- Pressure controller: PM2
- Mains to rains controller: not included
- Power Supply: 220-240 VAC / 50 Hz
- Water temperature range: 0-52°C (protect from freezing)
- Self-priming: 4 m
- UV dosage @40mJ/cm2: 54 Lpm
- UV dosage @30mJ/cm2: 70 Lpm
- UV dosage @16mJ/cm2: 130 Lpm
- Connection 1” BSP [25mm]
- Warranty: 3 years^
Original: $4,715.75
-65%$4,715.75
$1,650.51
Description
The Puretec Hybrid-P1 is an all-in-one filtration system with pump provision, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater. The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Note: This model does not include a pump or switchover valve but has the allowance to install your own pressure system into the unit.
Max pump dimensions: 560 (H) x 540 (W) x 240 (D) mm
Features and Benefits
- Designed specifically for rainwater, the Puretec HybridPlus is a plug & play package with pump provision, filters & UV in one unit that is weatherproof, rodent-proof and tamper proof.
- Bacteria protection - Kills 99.99% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire™ ultraviolet technology, natural process that’s completely eco-friendly and chemical-free.
- Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.
- Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.
- Neatly concealed ventilation to allow airflow and heat dissipation.
- Pump provision to allow for your own pump installation and compatible with a range of pumps.
Specifications
- Ordering Code: HYBRID-P1-LT
- Replacement Cartridge(s):
Stage 1 filtration
Code: PL05MP2
Stage 2 filtration
Code: CB05MP2
Stage 3 filtration
Code: PX01MP2
UV Lamp
Code: RL6
Quartz Sleeve
Code: RQS6 - Grundfos pump model: not included
- Rated power: N/A
- Pressure controller: PM2
- Mains to rains controller: not included
- Power Supply: 220-240 VAC / 50 Hz
- Water temperature range: 0-52°C (protect from freezing)
- Self-priming: 4 m
- UV dosage @40mJ/cm2: 54 Lpm
- UV dosage @30mJ/cm2: 70 Lpm
- UV dosage @16mJ/cm2: 130 Lpm
- Connection 1” BSP [25mm]
- Warranty: 3 years^
