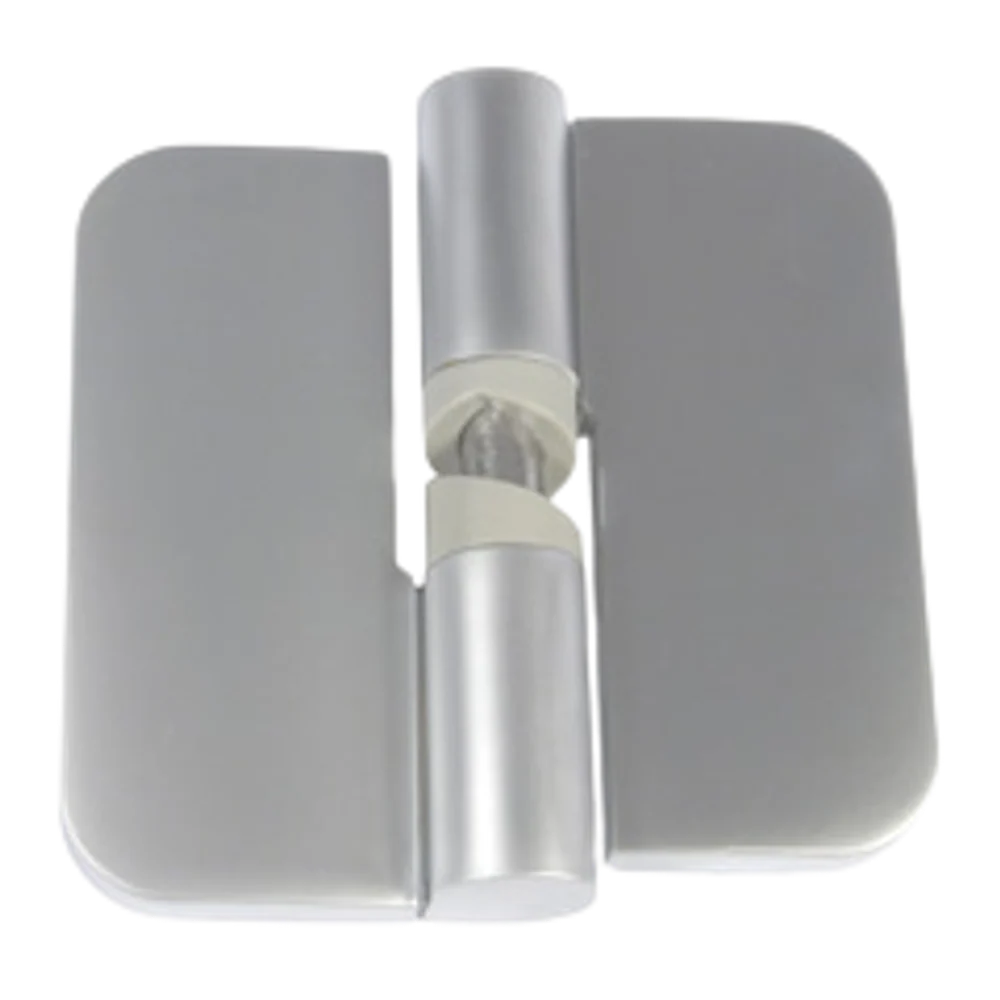

Metlam 106C Gravity Hinge In Antimicrobial

Specification

Material:

• Diecast Zinc, Alloy ZP3
• #304 Stainless Steel Shaft
• Nylon Inserts, ABS Snap On Covers

Finish: Antimicrobial

Mounting: Concealed Screw Fix or Bolt Through

Features: Gravity-assisted door opening with lift-off capability.

Minimum Hinge Clearance For Lift-Off Hinges: 30mm

Load Rating:

• 15Kg per hinge
• For optimum performance -
• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hingeNote: 3 Hinges per door are recommended to prevent door bowing

Disclaimer:

• Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment.
• When selecting this product, please view our Product Disclosure Statement in the Care and Maintenance Download below.
